How to DIY Your Shielded RCA Interconnect Cables

How to DIY Your Shielded RCA Interconnect Cables

Feb 09, 2016 | 0 comments posted by Vincent Zhang

This article is a guide to build your own simple high quality RCA interconnect cables for your Hi-Fi audio system. These "better DIY RCA interconnects" are unbalanced and made using shielded instrument cable and high quality RCA plugs. This is a fairly easy DIY cable and one stereo pair of DIY interconnects can be put together in about one hour. You will not need any fancy materials or special tools to build this cable. Just some meters of good shielded instrument cable and high quality RCA connectors, a soldering iron and some good solder with flux, a handy knife and a good side-cutter to prepare the wires for the soldering process. The photos only is as an example to demo how to DIY shielded RCA Interconnect Cables.

Material Prepared

1. High quality cable according to your requirements, and define its length, like as Canare Professional Broadcast Audio-cable.

Cable

Example of HIFI Cable

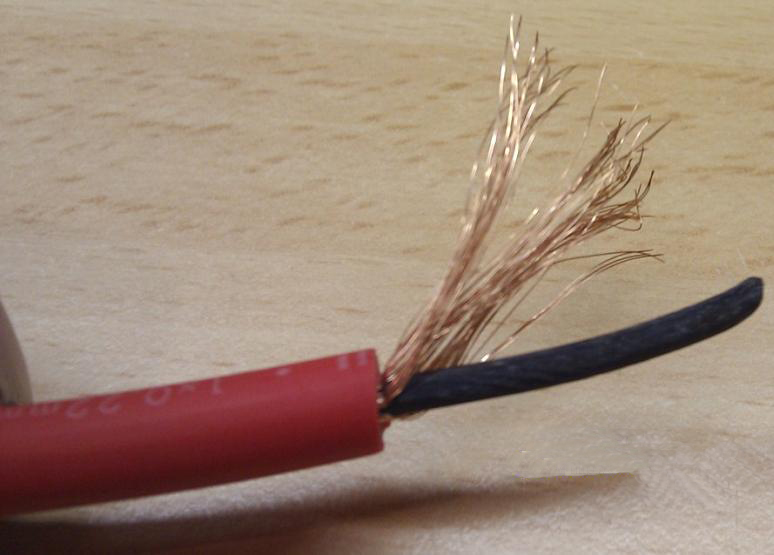

Constructions of Cable

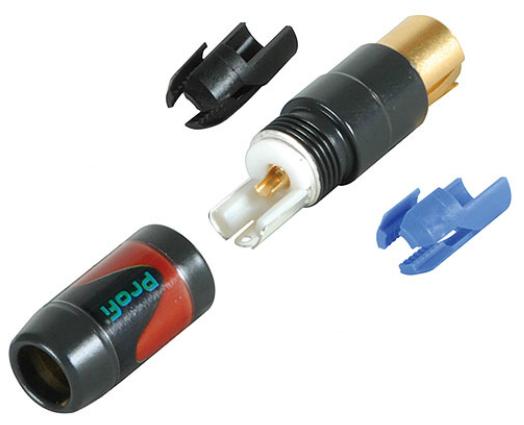

2. High quality RCA connectors which are black in color and with red and white indicator rings, and with gold-plated contacts and rubber end-boots to firmly hold the wire in place, like as Budweiser RCA connectors by U.S.
