Description
SHUGUANG Tube Rectifier 5Z3P J Military Grade for HIFI Tube Amplifier Model WVT2016 Replacement for 5T4 5U4G U52 High Reliability
Model No: WVT-5Z3P
Type: Direct thermal rectifier diode anode cathode double
Main application: low-power full-wave rectifier
Basic data:
Filament voltage (Uf) = 5V;
Filament current (If) = 3 0.3A;
Average rectified current (Icp) 230mA;
AC transformer secondary voltage rms (Urms) = 2x500V;
Filter capacitor (C) = 4F.

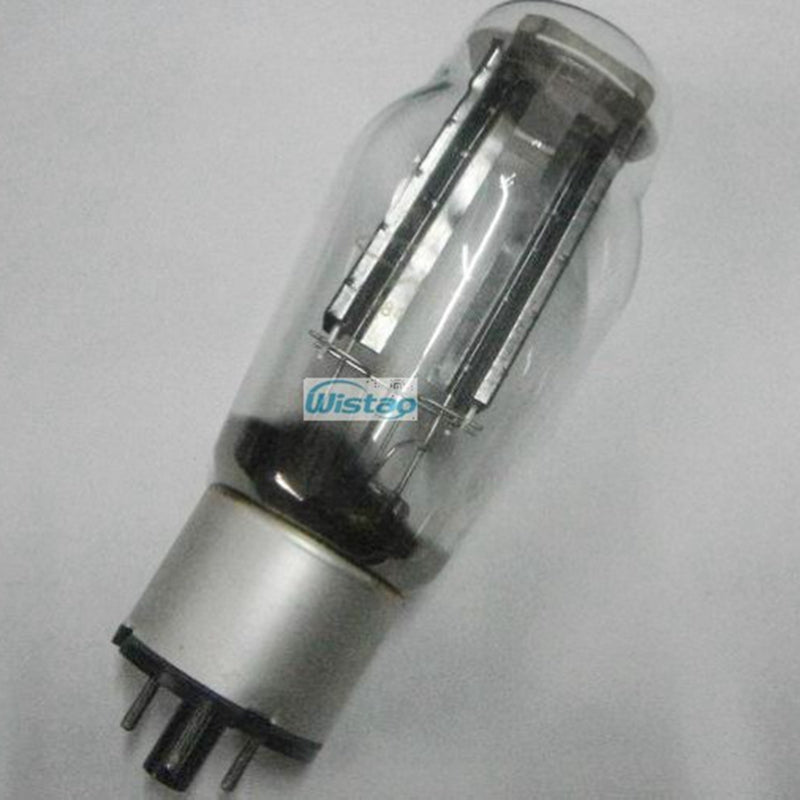

Metal Base
Plastic Base
Limit Using Data
Maximum filament voltage (Ufmax) = 5.5V;
The minimum filament voltage (Ufmin) = 4.5V;
Maximum rectified current (Ikmax) = 250mA;
Maximum reverse voltage peak (Upmax) = 1550V.
Application Curves of Rectifier Tube 5Z3P
